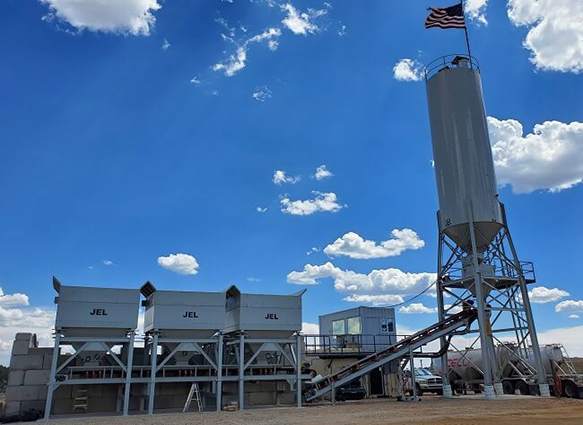

Decumulator plants are among the most versatile concrete plants, and their decumulative (reverse weighing) aggregate bins are true workhorses. JEL Concrete Plants uses this bin design as the base platform of several other plants, too.
Unlike traditional accumulative weighing concrete plants, which discharge one material into a scale at a time, Decumulator plants put each aggregate on its own scale and the materials can be discharged at the same time. This speeds up the production process immensely.
Properly configured, a high-production Decumulator can turn out over 200 cubic yards of concrete per hour. For comparison, with using 2 or more aggregates our high production Decumulator will produce a batch in half the time it would take with an accumulative plant.
Low Production Decumulator Concrete Plant
Our lower production Decumulator plants are smaller versions intended for budget-conscious operators and smaller markets. They use specially configured Decumulator aggregate bins to hold and weigh more than one aggregate in each hopper while still providing as much as 20 tons of storage for each material. These plants have lower hourly production, but are priced significantly lower.
Both the high production and low production Decumulator concrete plants can be configured to discharge materials directly into your front or rear discharge mixer trucks for transport.
Typical Specifications for a JEL Decumulator Ready Mix Concrete Plant
550 bbl. Cement Silo
14 cu. yd. cement batcher
2, 3, or 4 20-ton aggregate bins
30″ transfer conveyor
3″ water meter
Automatic Batching Control System
5 days setup supervision / onsite training
Load point dust collection – 6000+ CFM, 5:1 air/cloth ratio or less
Weighed Water – Water holding tank gravity feeds weigh hopper. Includes level sensors, load cells and water shut-off valve.
Larger Silo / Split Silo / Auxiliary Silo
30 and 40-ton aggregate bins
36″ transfer conveyor
Customization available by request
Not exactly what you want? Call us at (866) 535-6646 to discuss your specific needs. Each of our concrete plants can be customized to your specifications. Add more cement batchers, a larger silo, bigger transfer conveyor… whatever! We will build the Ready Mix concrete plant you want.
Why JEL Concrete Plants is Your Best Choice
Proven designs. – Our engineering staff has over 50 years of combined experience designing concrete batch plants and material handling equipment. Our engineering team contributed to many of the concrete plant designs and principles used by our competitors before starting their career with us.
High-Quality Construction and Materials. Skilled craftsmen build our concrete batch plants in Milwaukee, Wisconsin with high-quality USA steel from local suppliers. All of our parts, controls and accessories are high-quality and factory supported.
We produce high-quality ready mix, precast and central mix concrete plants at pricing routinely beating our competitors. Proudly made in America by skilled craftsmen near Milwaukee WI, an area well known for high quality construction and mining equipment manufacturers, JEL Concrete Plants’ quality is second to none. Call 262-223-3205 to discuss the concrete plant configuration & calibration perfect for your production specifications.
